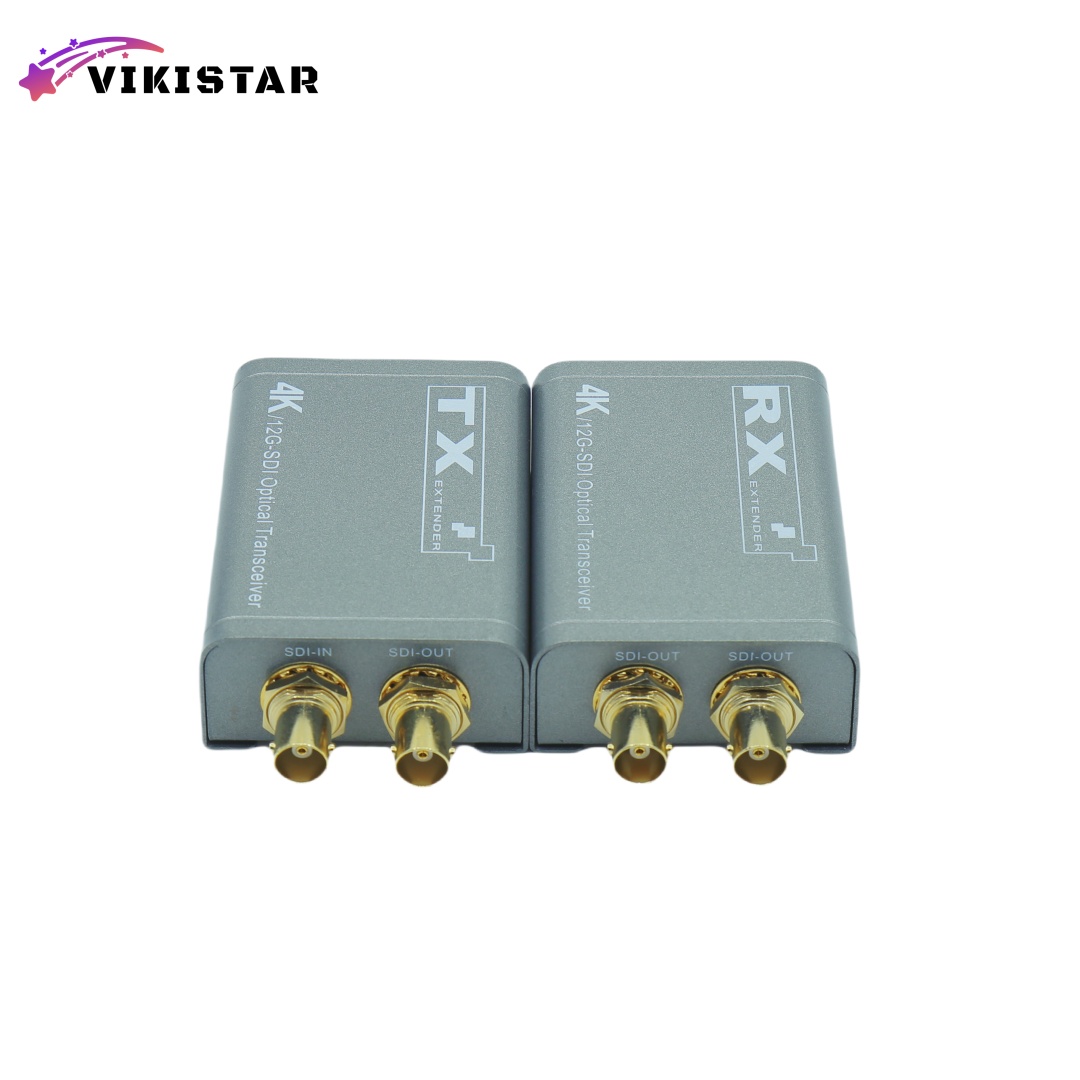

20KM 4K60 12G-SDI Fiber Optical Extender with SDI Loop

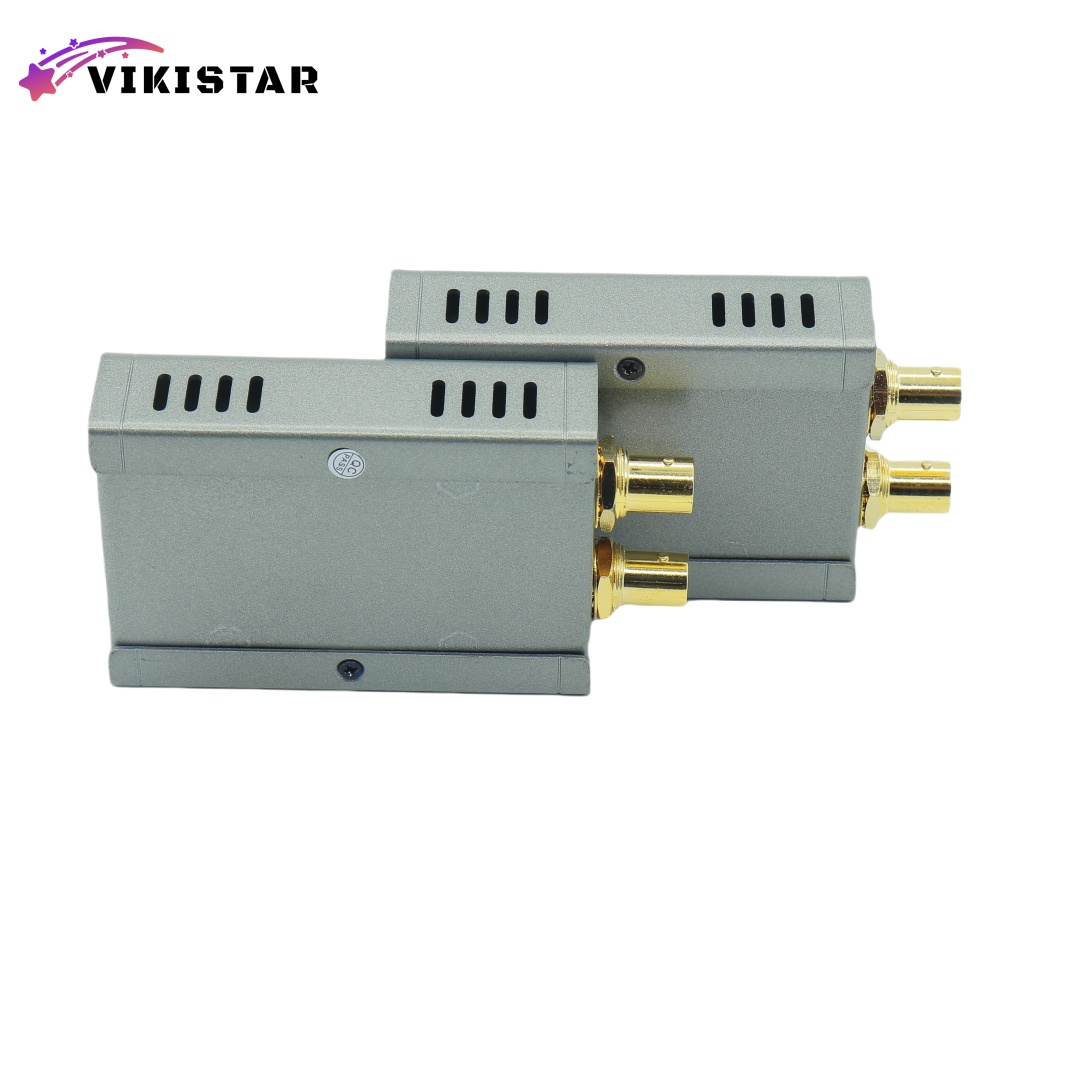

20KM 4K60 12G-SDI Fiber Optical Extender with SDI Loop - Image 2

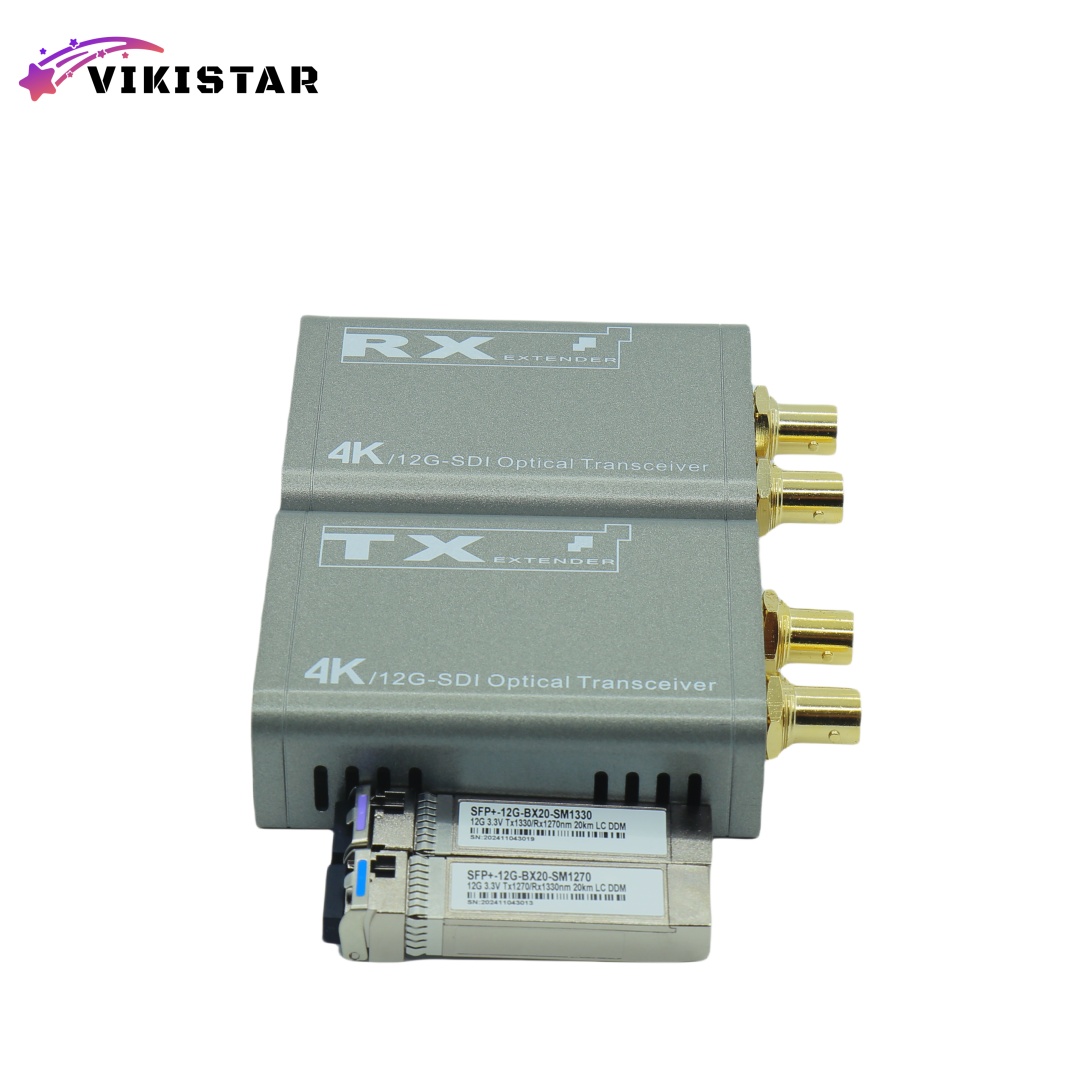

20KM 4K60 12G-SDI Fiber Optical Extender with SDI Loop - Image 3

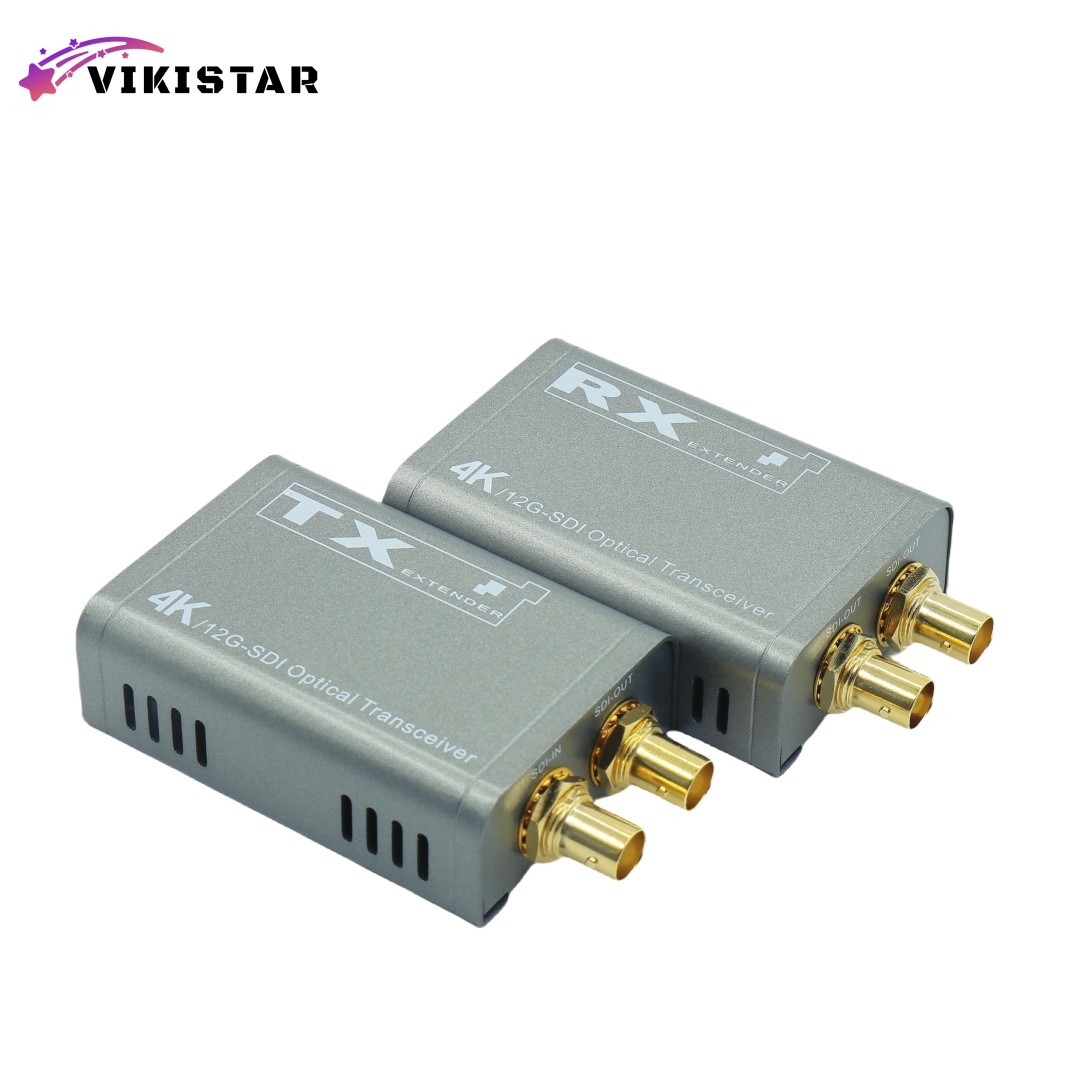

20KM 4K60 12G-SDI Fiber Optical Extender with SDI Loop - Image 4
,

20KM 4K60 12G-SDI Fiber Optical Extender with SDI Loop

+ Free Shipping
The M-SD100A fiber extender transmits 4K/12G SDI signal over long distances via a single fiber, supports a 16-channel embedded audio synchronization function; The multi-rate 12G-SDI interface is compatible with all SD, HD, and Ultra HD formats and devices, up to 2160P@60Hz, including Class A and Class B devices. The transmitter is equipped with an optical fiber expansion slot, which can be installed with any standard 3G, 6G, or 12G-SDI SFP optical fiber module, and can adapt to a variety of complex application environments by using the low-cost optical cable widely used in computer networks to transmit SDI.
Categories: ,

Model: M-SD100A

20KM 4K60 12G-SDI Optical Extender with Loop



Main features



  • Long-distance transmission of 4K/12G-SDI video and audio signals through optical fiber, up to 3-20KM
  • HD video signal resolution up to 2160P@60Hz
  • Support all-digital lossless transmission, 16-channel embedded audio, and video synchronous transmission
  • Support local loop output; remote support two ways synchronous output
  • Support PAL/NTSC; Strong compatibility, can automatically identify and configure a variety of display modes
  • Supports plug and play and hot swap
  • Built-in automatic balancing system, the picture is smooth, clearand stable
  • Built-in ESD electrostatic protection circuit, all-round protection system
  • Easy to install, plug and play, no setup require

Product Interfaces



Packing list



  • SDI Extender transmitter    x1 pc
  • SDI Extender receiver    x1 pc
  • power adapters    x2pcs
  • User manual    x 1 pc
