20KM HDMI 4K30 Fiber Extender, with IR&KVM
20KM HDMI 4K30 Fiber Extender, with IR&KVM - Image 2
20KM HDMI 4K30 Fiber Extender, with IR&KVM - Image 3
,

20KM HDMI 4K30 Fiber Extender, with IR&KVM

+ Free Shipping

The extender provides extension of HDMI signals long distances over a single Fiber, it supports high resolution up to 1080P and 4K@30Hz(optional model function), KVM and IR signal transmission, and embedded audio input, and output (optional model function). The extender can be used for a wide range of applications requiring long-distance transmission of high resolution with high quality by its good stability and powerful security.



Categories: , Tags: ,

Model: M-HF100U

20KM HDMI Fiber Extender, support Audio, with IR&KVM



Main Features:

  • Transmits HDMI video and audio signals up to 20KM over a Single Fiber
  • Support video resolution up to 1920*1080P@60Hz, 4K@30Hz(optional model function)
  • Support IR signal transmission(20KHz~60KHz)
  • Support keyboard and mouse
  • Support one-way embedded independent audio input and output (optional model function)
  • Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch, distribution function is realized\Compliance with HDMI 1.3 and HDCP 1.2 standard
  • High compatibility, can auto-match source and display device
  • Built-in automatic adjustment system, make the image smooth, clear and stable
  • Built-in ESD protection system
  • Simple to install, plug and play

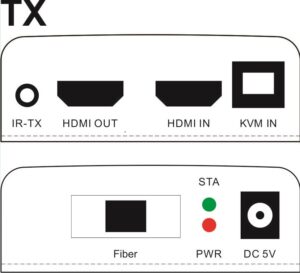

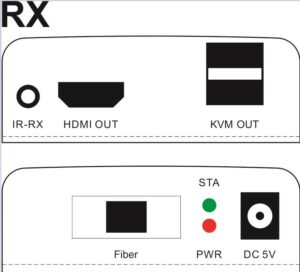

Product interfaces

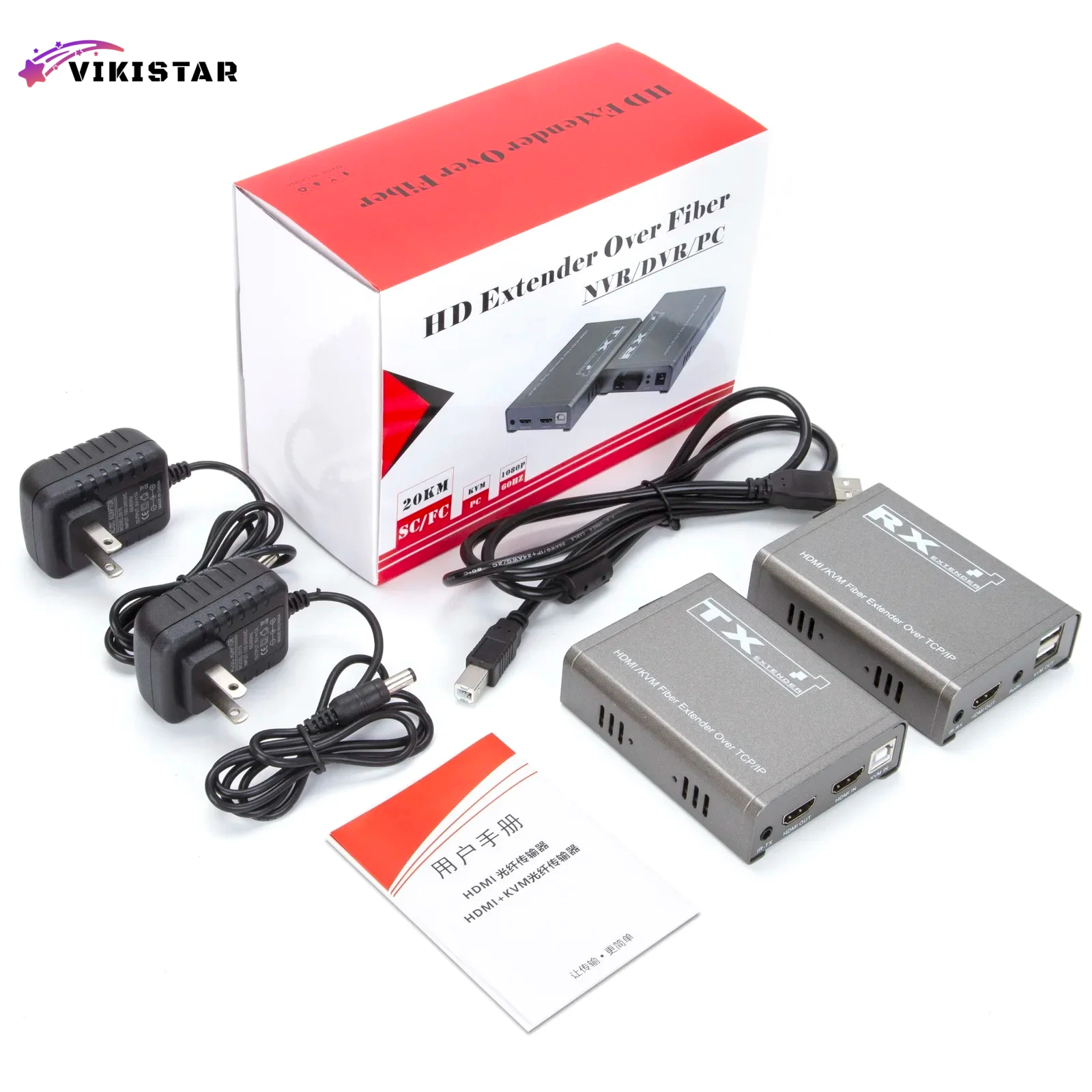

Packing list

  • HDMI transmitter x1 pcs
  • HDMI receiver x1 pcs
  • USB Cable x1 pcs
  • Power adapter x2 pcs
  • IR TX/RX terminal x 1 set (optional)
  • User manual x1 pcs
