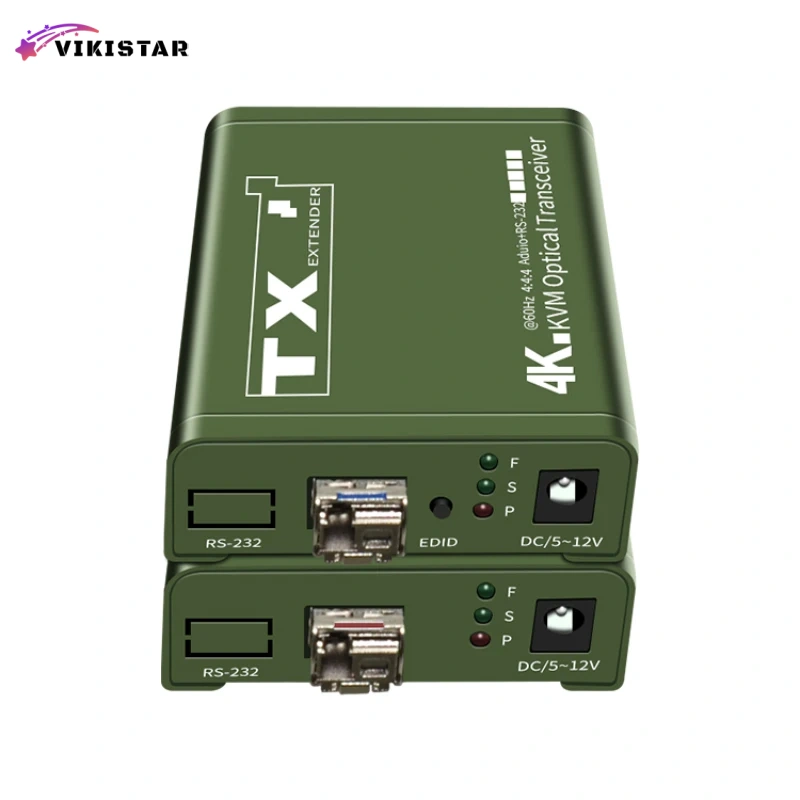

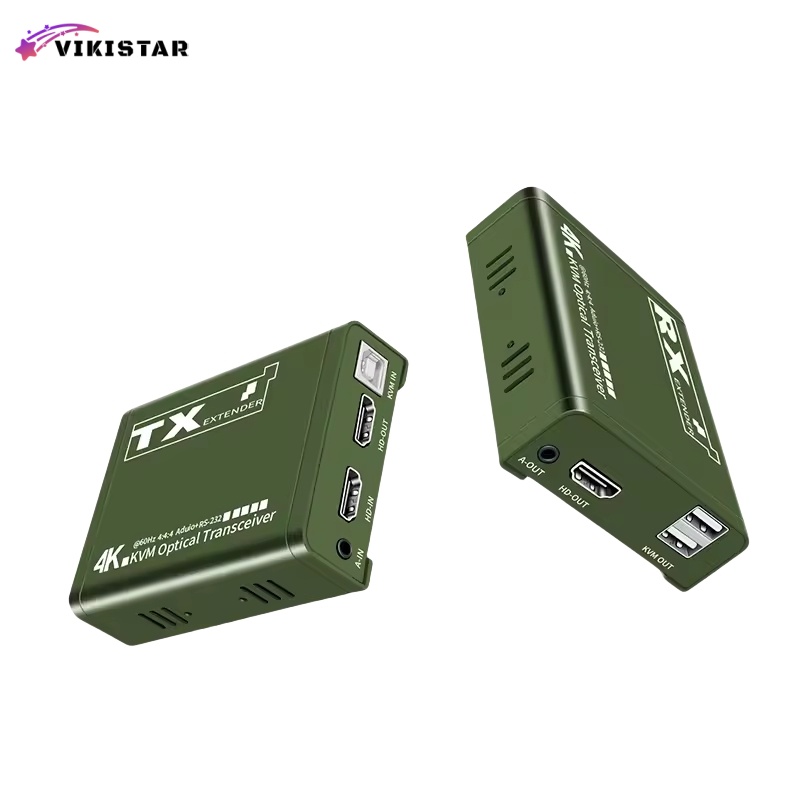

20KM HDMI 4K60 Fiber Extender, with KVM, LC 10G Optical Module

+ Free Shipping

M-HFK20U transmits high-definition video signals over long distances through optical fiber, supports KVM or RS232 function, and can operate remote devices using a keyboard and mouse or RS232. This product transmits HDMI high-definition audio and video signals with a resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, it supports KVM signal or RS232(optional), independent audio transmission, and supports local loop output, which reduces costs for users while ensuring signal stability. This model has a built-in learning EDID function, which greatly improves the compatibility of the device.

Model: M-HFK20U

20KM HDMI 4K60 Fiber Extender, with KVM, LC 10G Optical Module



Main Features

  • Transmit HDMI video and audio signals over long distances through optical fiber,     up to 20 kilometers;
  • HD video signal resolution can reach up to 4K@60Hz (4:4:4);
  • Support KVM, use keyboard and mouse to operate remote devices (or RS232  function is optional);
  • Supports one-way embedded independent audio input and output;
  • Supports loop output;
  • Support HDMI 2.0 and HDCP 2.2 standards;
  • Support EDID learning, improve compatibility, match signal sources and display devices for automatic storage;
  • Built-in automatic equalization system, the picture is smooth, clear and stable;
  • Built-in ESD electrostatic protection circuit to protect system safety in all aspects
  • Support 5-12V power supply

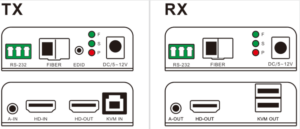

Product Interfaces

Packing list

  • HDMI transmitter    x1 pcs
  • HDMI receiver          x1 pcs
  • 10G optical module     x1 pair
  • USB Cable      x1 pcs
  • Power adapter       x2 pcs
  • User Manual          x1 pcs
