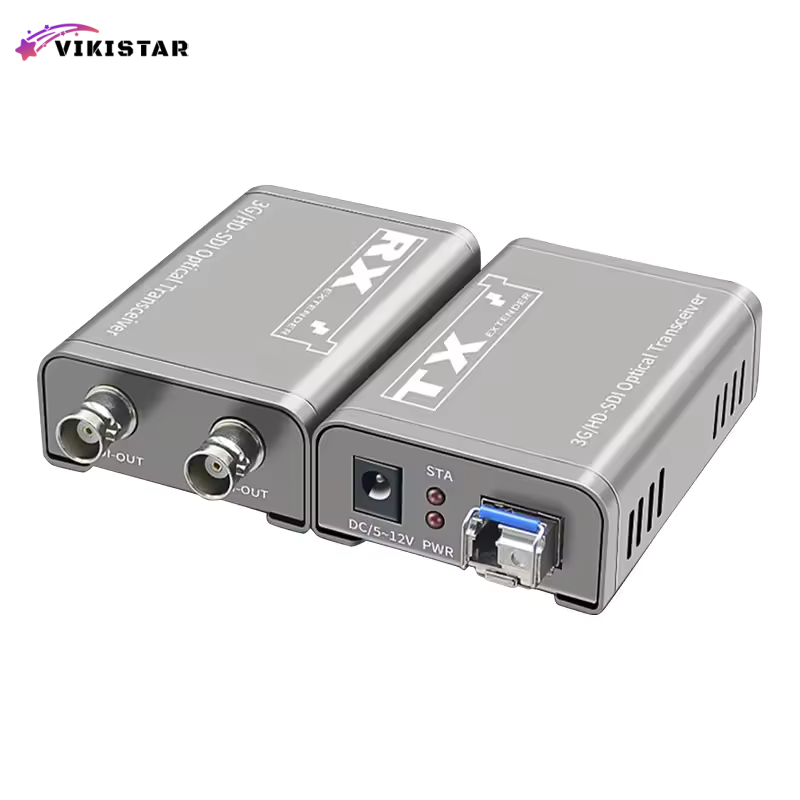

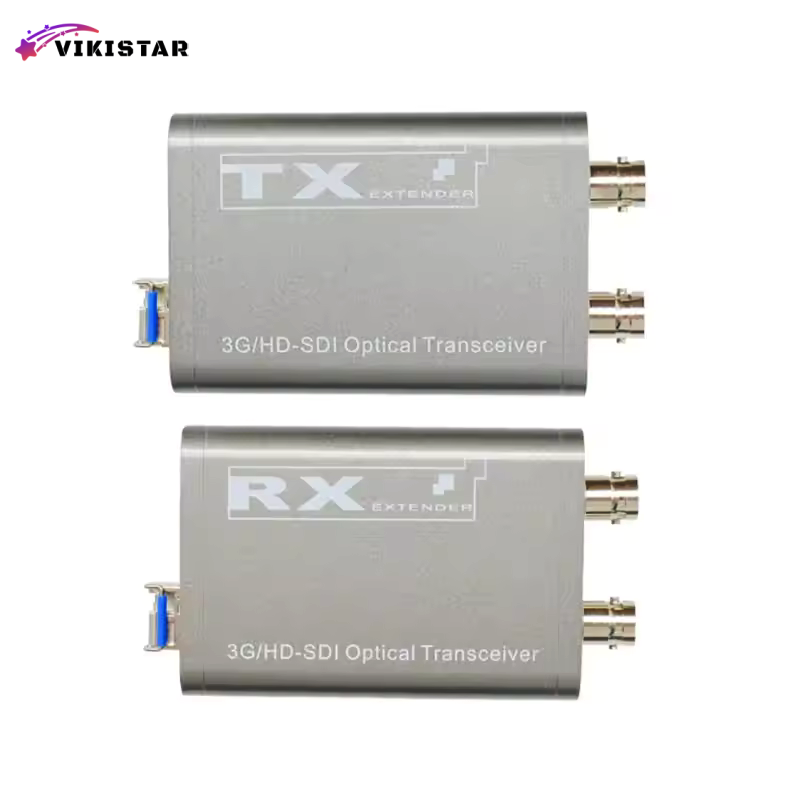

20KM SDI 1080P60 Fiber Extender with Optical Module
20KM SDI 1080P60 Fiber Extender with Optical Module - Image 2
,

20KM SDI 1080P60 Fiber Extender with Optical Module

+ Free Shipping

M-SD100 fiber extender transmits 3G/HD-SDI video signals over a long distance through a single fiber cable, and supports 8-channel embedded audio synchronization function; It can adapt to a variety of complex application environments. The equipment has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high performance and efficient 3G/HD-SDI signal extension mode.



Categories: , Tags: ,

Model: M-SD100

20KM 3G-SDI Fiber Extender, support Audio.



Main Features:

  • Long distance transmission of 3G/HD-SDI video and audio signals through optical fiber, up to 3-20KM (default 3KM)
  • HD video signal resolution up to 1920*1080P@60Hz
  • Support all digital lossless transmission, 8-channel embedded audio and video synchronous transmission
  • Support local output, the remote end support two-way synchronous output
  • Support PAL/NTSC, strong compatibility, able to automatically identify and configure various display modes
  • Support plug and play and hot plug
  • Built-in automatic adjustment system, make the image smooth, clear and stable
  • Built-in ESD protection system
  • Simple to install, plug and play

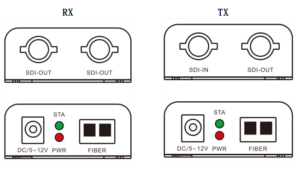

Product interfaces:



Packing list

  • SDI transmitter x1 pcs
  • SDI receiver x1 pcs
  • Power adapter x2 pcs
  • User manual x1 pcs
