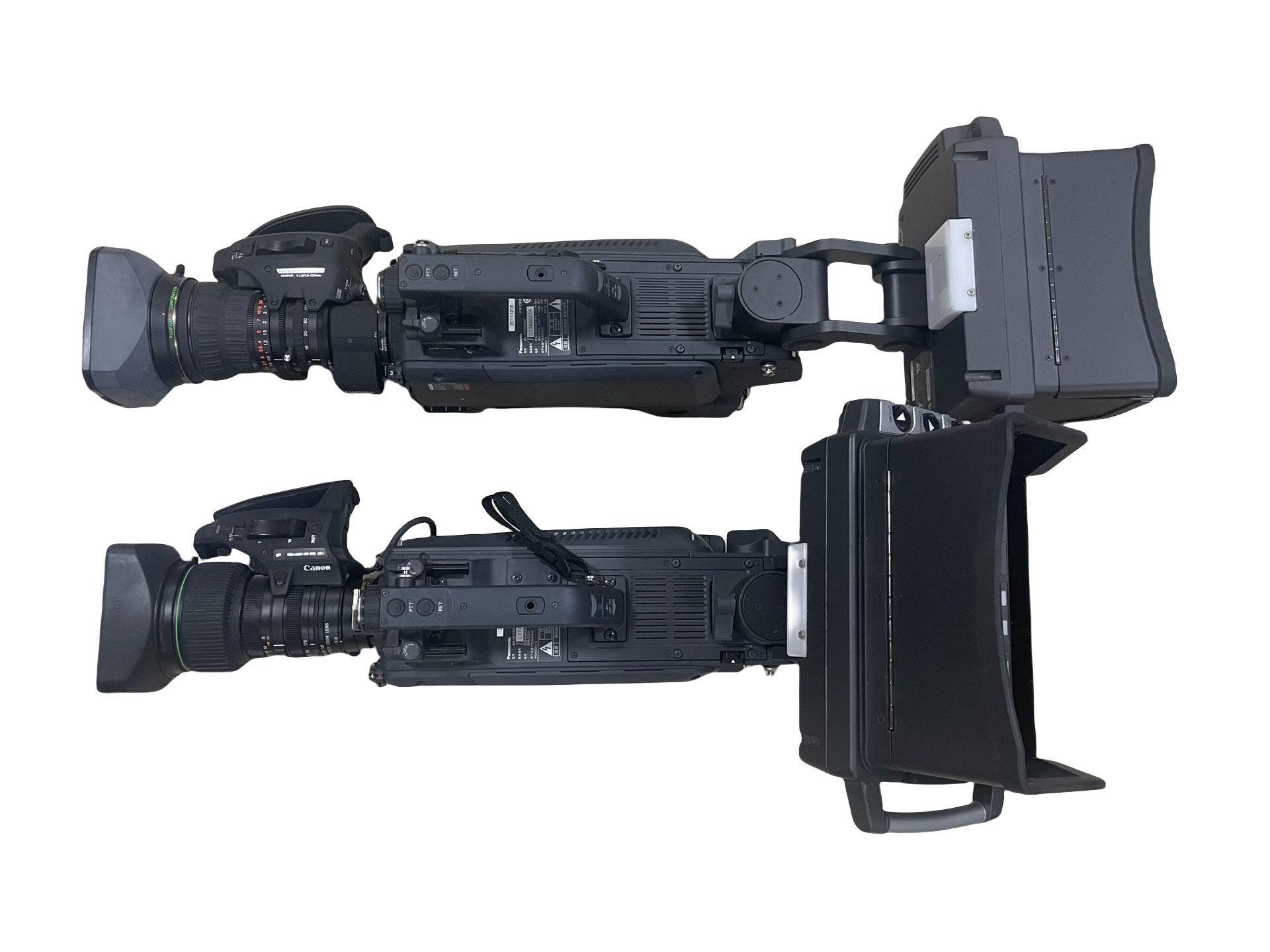

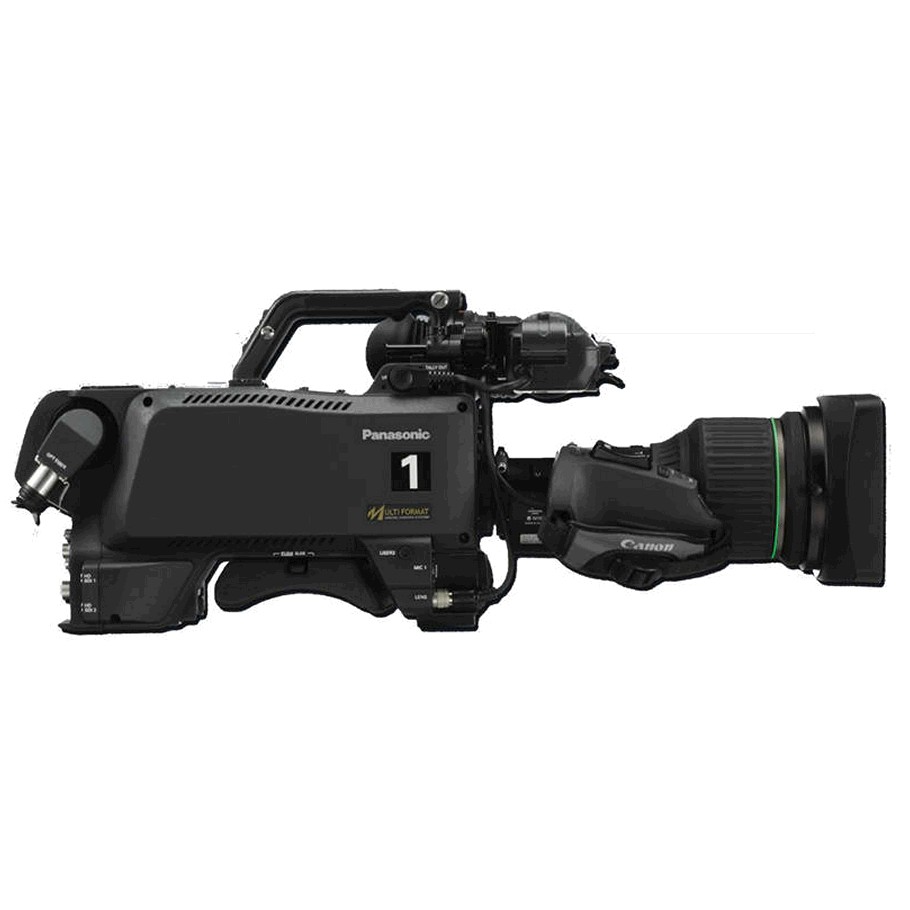

Model: Panasonic AK-HC3500 studio camera system.
Come with EVF AK-HVF931AMC, CCU AK-HCU3550MC, RCP AK-HRP935. Lens is optional.
Main features of Panasonic AK-HC3500 studio camera system:
- Sensors: Three 2/3-type 2.2-megapixel IT-CCDs, delivering 1080i video with 1,100 horizontal lines of resolution.
- Sensitivity: F10 (1080/59.94i) or F11 (1080/50i) at 2000 lx, 60 dB signal-to-noise ratio, low smear (< -130 dB).
- Supported Formats: 1080/59.94i, 50i, 29.97PsF, 25PsF, 23.98PsF; optional SD (480/59.94i, 576/50i) with downconverter.
- Image Processing: 14-bit A/D converter, 38-bit DSP, Dynamic Range Stretch (DRS), 12-axis color correction, cine gamma, chromatic aberration compensation (CAC).
- Connectivity: Optical fiber transmission (up to 2,000 m) with AK-HCU355A/AK-HCU931 CCU, HD/SD-SDI outputs, return video, prompter inputs.
- Storage: SD card slot for user settings, 8 scene files, 16 lens files.
- Accessories: Compatible with AK-HVF70E (7-inch LCD) or AJ-CVF25GJ viewfinders, AK-HRP935A/AK-HRP931 remote panels, AK-MSU935A master setup unit.
- Design: Compact (10.4 lbs), ergonomic with adjustable shoulder pad, low center of gravity, backlighted rear panel.
- Additional Features: Enhanced DTL signal processing, no external frame synchronizer needed for return video, cable-free build-up unit mounting.
For detailed specifications, please visit Panasonic official website:https://www.panasonic.com/in/business/broadcast/studio-camera-systems/ak-hc3500.html
