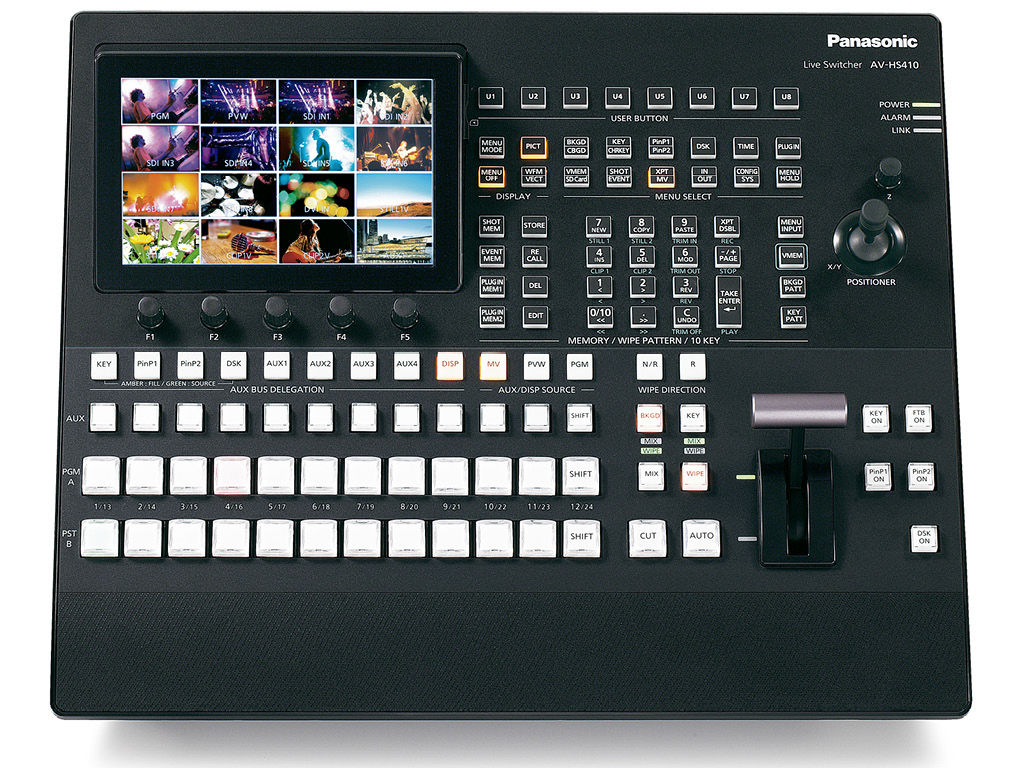

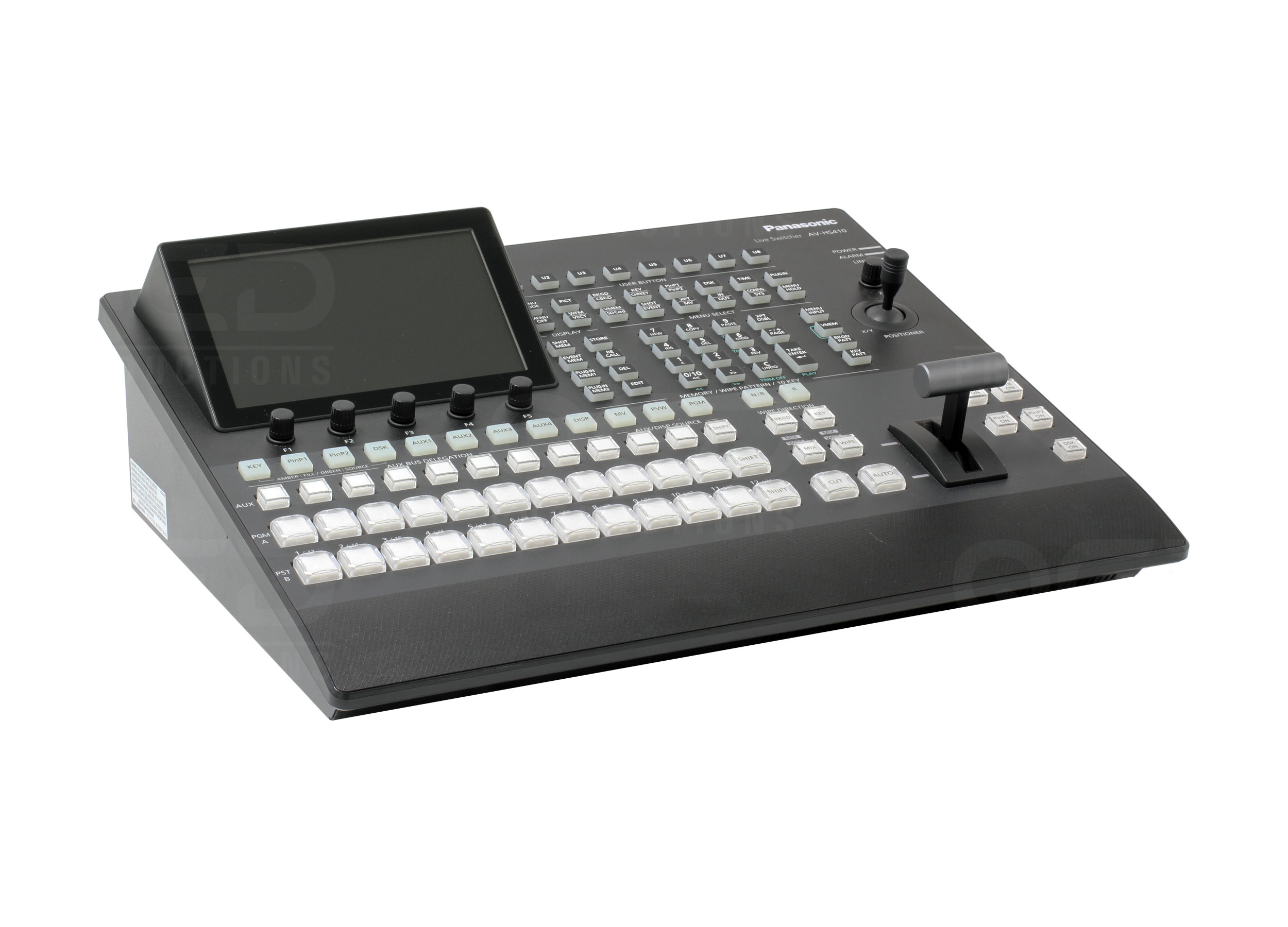

Model: Panasonic AV-HS410
Condition: 80% new.
Accessories: None
Menu language: English.

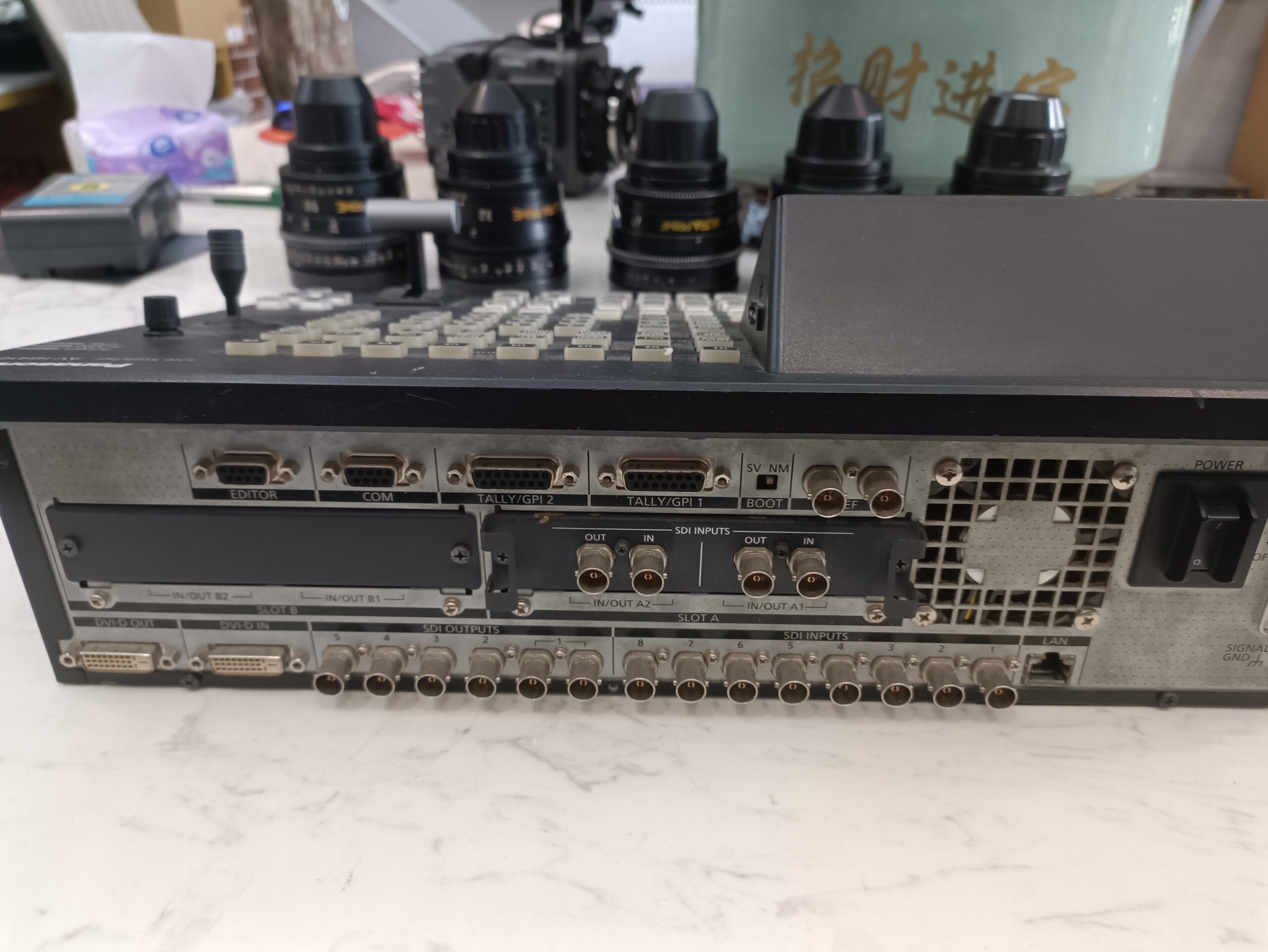

Video Input: 10 SDI+ 1 DVI
Video Output: 8 SDI + 1 DVI
Main features of Panasonic AV-HS410:
- Compact Design: Combines high-end performance and functions into a compact body suitable for live operations.
- Inputs and Outputs: Nine standard inputs (eight SDI and one DVI) and six standard outputs (five SDI and one DVI). It can be expanded with optional boards to a maximum of 13 inputs and 10 outputs.

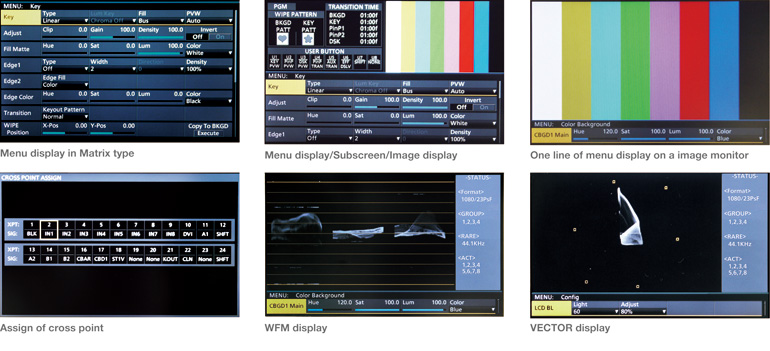

- Multi-Mode Color LCD Monitor: Built-in 7-inch multi-mode color LCD monitor for displaying versatile menus, image monitor, waveform/vectorscope, etc.
- Chroma Keying: Features high-quality Primatte® chroma keying for professional green screen effects.

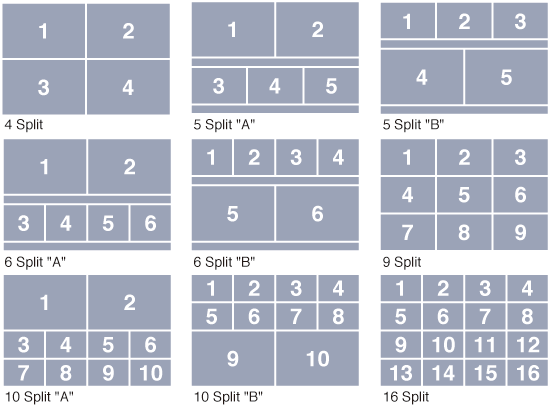

- MultiViewer Display: Enhanced MultiViewer with up to 16 splits enables various screen variations, including clock, level meter, and 4:3 marker display.
- Video Memory Function: Allows playback of two channels of still or moving images.
- Plug-in Compatibility: Supports Plug-in API function for external control, external camera control, and output of status data.
- HD/SD Multi-Format Support: Supports standard HD/SD multi-format, including 1080/24PsF, with system frequency switchable between 59.94 Hz/50 Hz/24 Hz.
- Flexible Input/Output Options: Wide range of optional boards available for input and output of analog component and various other signals.
- Built-in Frame Synchronizer: All input channels feature a built-in frame synchronizer for switching unsynchronized video signals.
- Versatile Transitions and Effects: Includes DVE transition patterns, circle wipe, page turn, and other versatile transitions and effects.
- Memory Functions: Features shot memory for up to 100 image effects and event memory for up to 64 sequential image effects.
- Easy-to-Use Panel Layout: Control panel with direct button control, numeric keypad, and LCD monitor’s matrix menu for quick and intuitive operation.
- Expandable with Plug-in Software: Supports plug-in software development with a Software Development Kit (SDK) for adding new functions.
For detailed specifications, please visit Panasonic’s official website: https://pro-av.panasonic.net/en/sales_o/switcher_mixer/av-hs410/
