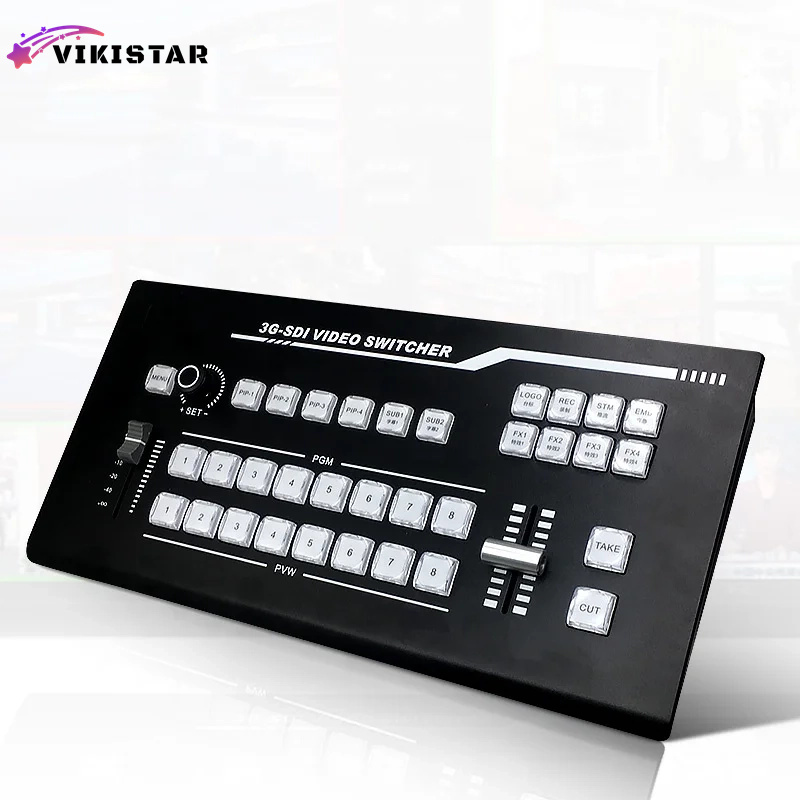

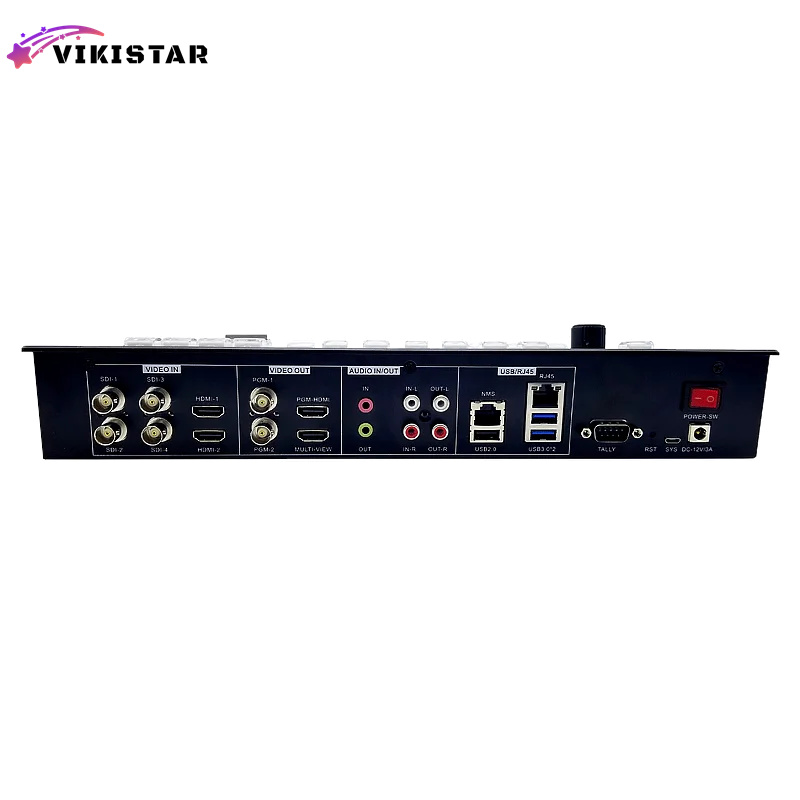

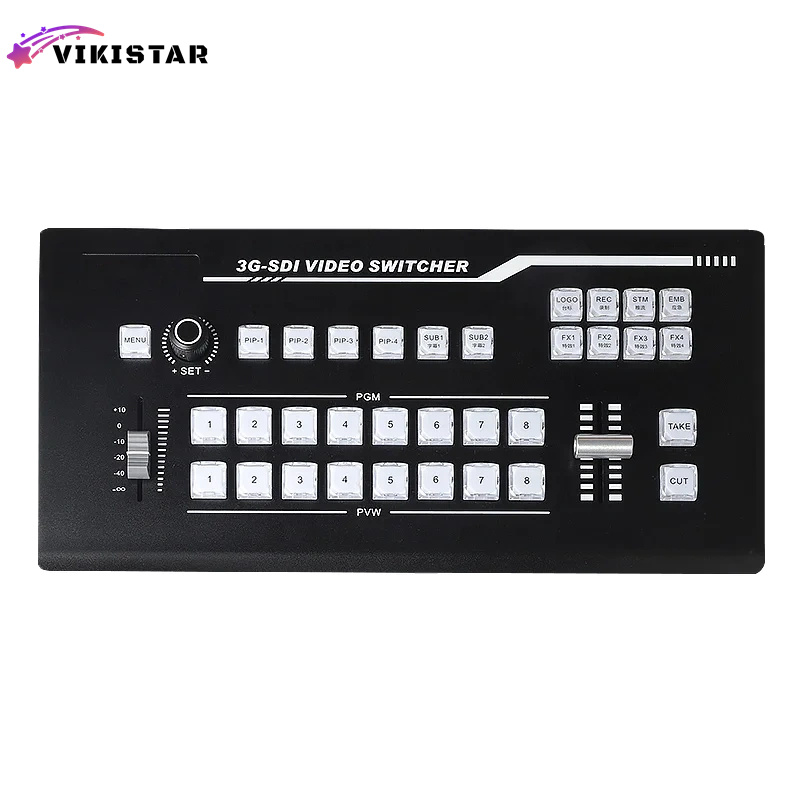

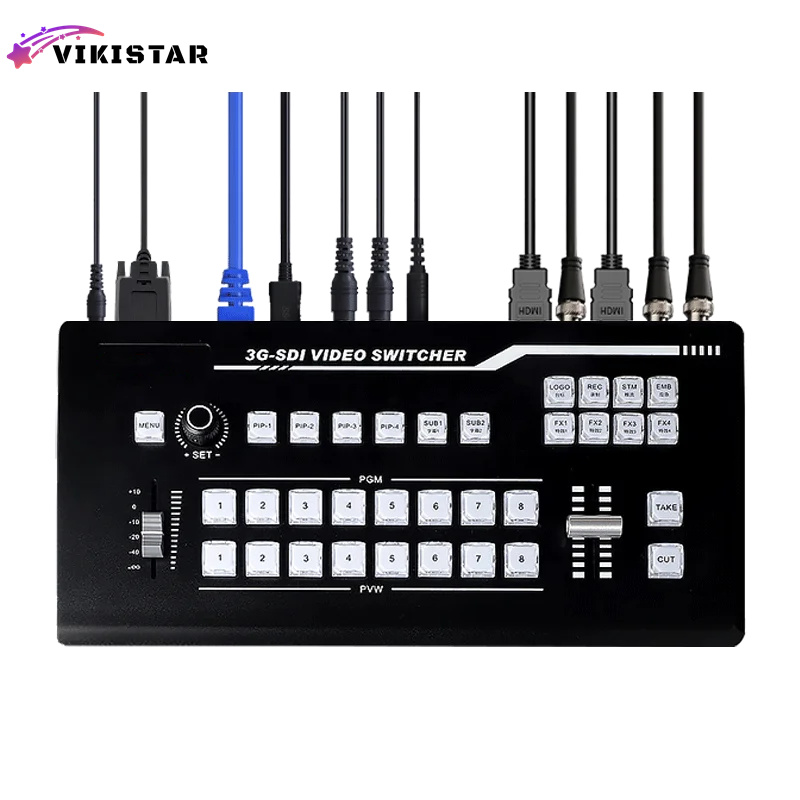

S08 8 Channel SDI HDMI Live Production Switcher with Multistream and Recording

S08 8 Channel SDI HDMI Live Production Switcher with Multistream and Recording - Image 2

S08 8 Channel SDI HDMI Live Production Switcher with Multistream and Recording - Image 3

S08 8 Channel SDI HDMI Live Production Switcher with Multistream and Recording - Image 4

S08 8 Channel SDI HDMI Live Production Switcher with Multistream and Recording - Image 5

Switcher, Vikistar Switcher

S08 8 Channel SDI HDMI Live Production Switcher with Multistream and Recording

+ Free Shipping

S08 series live production switcher can switch up to 8 different video inputs (4xSDI + 2 x HDMI + 2 x RTSP online video. The input format will be auto-detected by the switcher, so you don’t have to worry about compatibility issues.

The multiview layout allows you to show preview, program, and input sources all on the same screen with adjustable PIP & POP functionality. Users can also add their brand logo and subtitle to the PGM video for a more stunning live production.

Categories: Switcher, Vikistar Switcher Tag: Video switcher

Description

Product features:

Inputs:
- 4x SDI, 2x HDMI, 2x USB Media/IP Stream
Outputs:
- 2x SDI PGM, 1x HDMI PGM, 1x HDMI AUX
PinP:
- Support for Picture-in-Picture with up to 4 videos simultaneously

Audio:

Inputs:
- 1x R/L audio, 1x 3.5mm audio
Outputs:
- 1x R/L audio, 1x 3.5mm audio
Control:
- Audio on, audio off, audio follow video, audio delay

Overlay and Effects:

Logos and Subtitles:
- Support for overlaying logos and subtitles
Chroma Key:
- Chroma Key support for background removal

Encoding and Streaming:

Built-in Encoding:
- H.264 encoding for efficient video compression
Multistream:
- Support for streaming to 4 platforms simultaneously
Orientation Support:
- Portrait/vertical and landscape/horizontal streaming

Recording and Emergency Mode:

Recording:
- Simultaneous recording of PGM video to USB Drive
Emergency Mode:
- Support for Emergency Mode (EMB)
