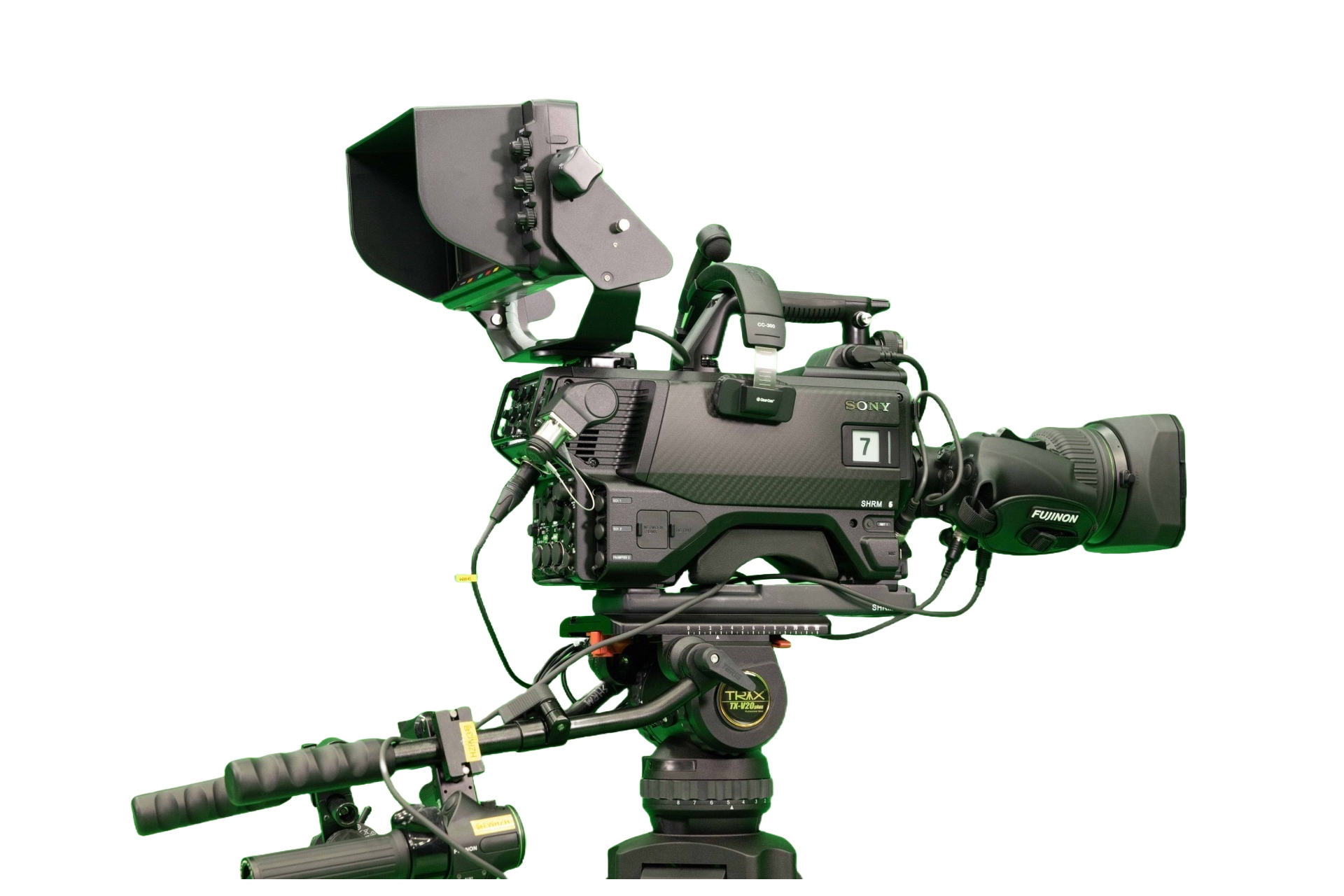

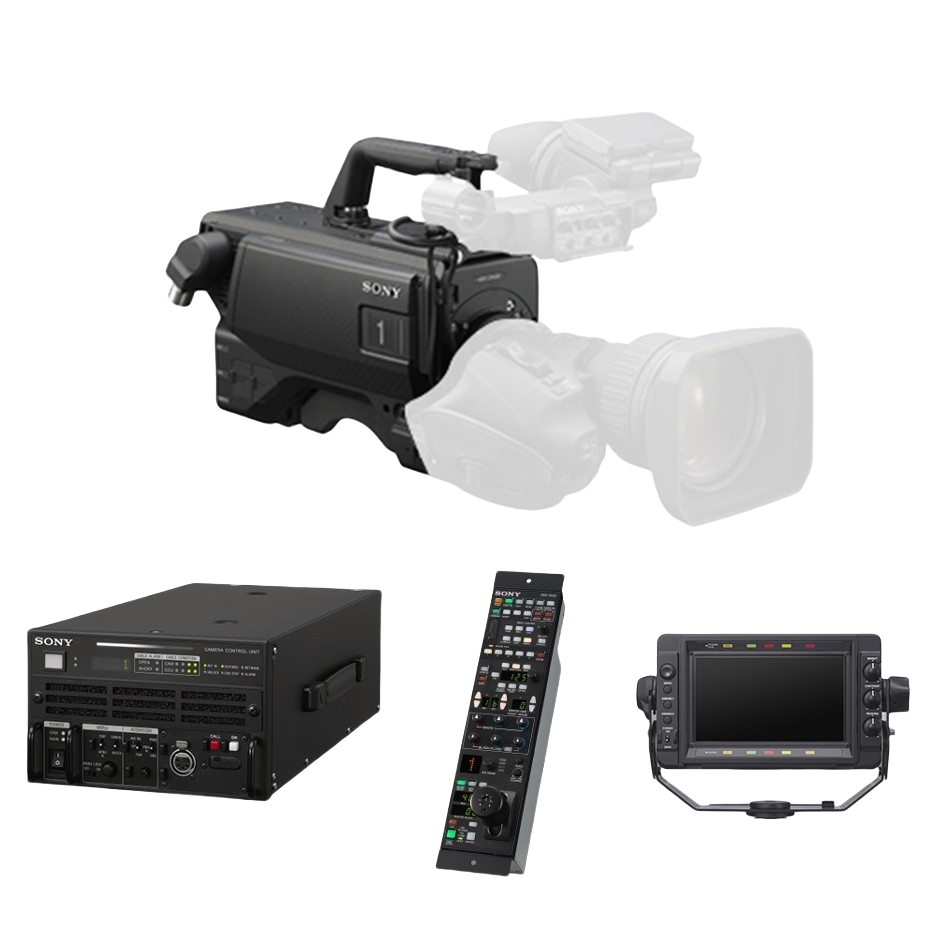

Sony HDC-3500 4K/HD Studio Camera System

Model: Sony HDC-3500 4K/HD Studio Camera System

Sensor: Three 2/3-inch 4K CMOS sensors with global shutter technology, eliminating the “jello effect” and banding noise, delivering 4K resolution (2000 TV lines).
Sensitivity: F10 (1080/59.94p) or F11 (1080/50p) at 2000 lx, with a signal-to-noise ratio of -62 dB for low-noise images.
Supported Formats:
- 4K: UHD (2160/59.94p, 50p, 29.97p, 25p, 23.98p).
- HD: 1080/59.94p, 50p, 59.94i, 50i, 720p; supports quad-speed (4x) HD for slow-motion with optional licenses.
High Dynamic Range (HDR): Supports Sony’s SR Live workflow for simultaneous 4K HDR and HD SDR production, reducing equipment and crew needs.
Color Space: Achieves ITU-R BT.2020 wide color gamut for vibrant, accurate colors.
Connectivity:
- Standard optical fiber transmission (SMPTE-standard) with HDCU-3100/3500/2000 Camera Control Units (CCUs) for uncompressed video up to 2,000 meters.
- Optional IP support via HDCE-TX30 adaptor for ST 2110 signals, enabling IP-based remote production.
- Supports 12G-SDI, Quad 3G-SDI, and 3G-SDI outputs; Network TRUNK (LAN port) for 1 Gbps data transmission.
Filters: Dual optical filter wheels (Neutral Density and Color Correction), controllable via remote panel, master setup unit, or camera head.
Focus Assist: Viewfinder Detail, Focus Assist Indicator, and Focus Position Meter for precise focusing.
