Main features:

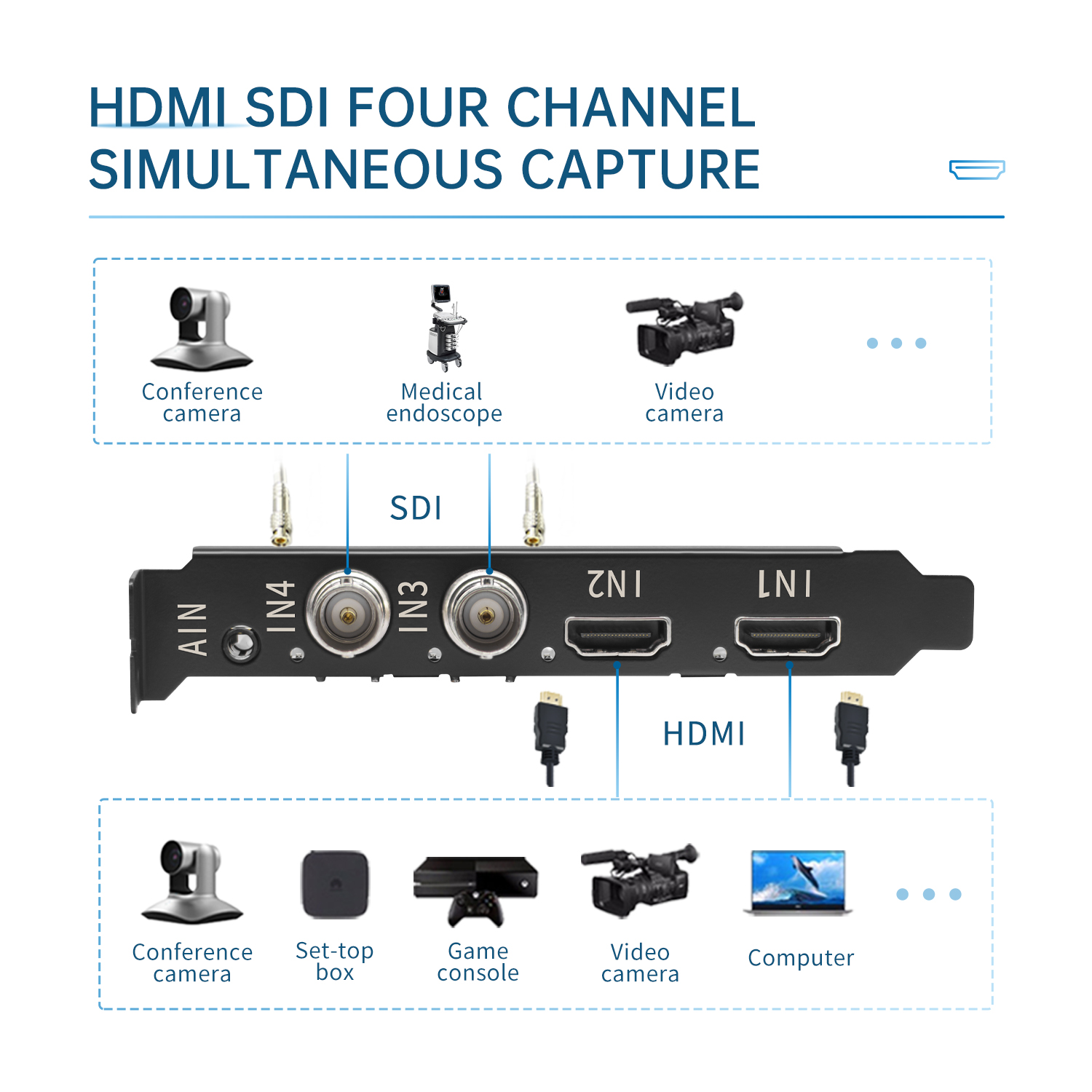

- Interface: PCIe 2.0 x4, with 2x HDMI 1.4a inputs or 2x 3G-SDI Level-B inputs and PCIe x4 output (compatible with PCIe x8 and x16).
- Supported Resolutions: Supports various video resolutions including 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, and 480I.
- Audio: Supports embedded audio input via HDMI or SDI.
- Video Standards: HDMI 1.4a input format, YUV2 4:2:2 output color space.
- Recording Modes: Supports software compression and real-time mode for video recording.
- Operating Systems: Compatible with Windows (7, 8, 8.1, 10), Linux (kernel version 2.6.38 and above), and Windows Server 2008 R2.
- Compatible Software: Works with various software applications including Vmix, Wirecast, OBS, VJ, Xsplit, Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, AMCAP, etc.
- Compatible SDK: Supports DirectShow (Windows), DirectSound (Windows), and V4L2.
- Firmware: Firmware can be updated.
- Dimensions: 98x87mm, with a full-height bracket compatible with full-height chassis.
- Power Consumption: Consumes less than or equal to 2.0 W.
- Operating Temperature: Supports operation within 0-60 degrees Celsius.
- Storage Humidity: Supports storage in environments with humidity ranging from 5% to 90%.
